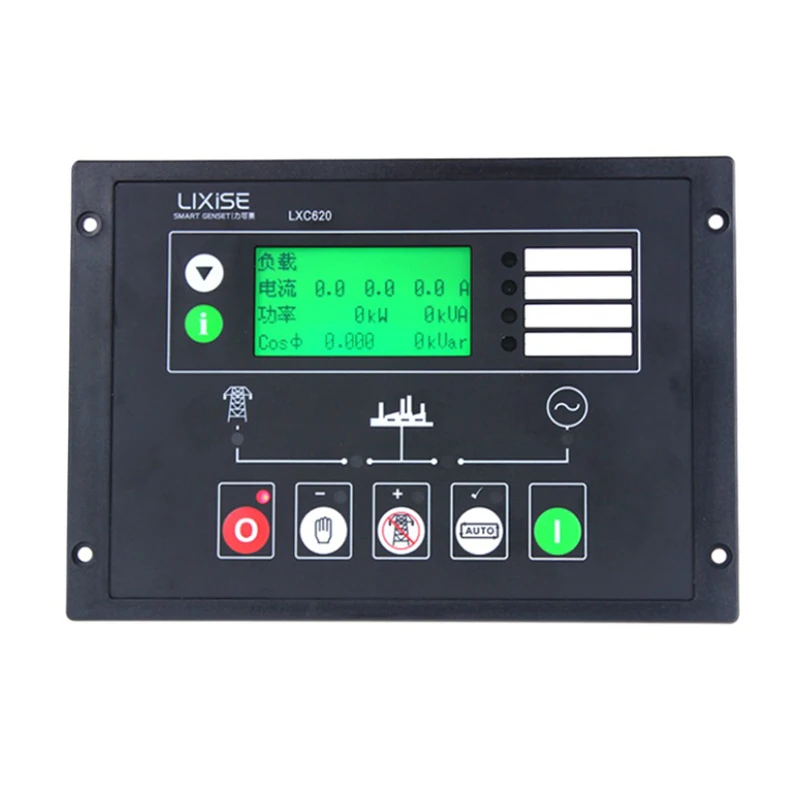

LXC620 LIXiSE controller generator set automatic start stop LCD display module, used for single machine automation systems

LXC620 LIXiSE controller generator set automatic start stop LCD display module, used for single machine automation systems

Product Introduction:

The LXC620 generator controller adopts 32-bit microprocessor and embedded system control technology, achieving precise measurement of 16 parameters, 32 programmable inputs, 35 warning protection parameters, 85 programmable outputs, and a total of 121 configurable parameters. Among them, 108 can be configured from the panel. Using an LCD graphic display module, various engine and generator parameters can be displayed. It has been rapidly promoted and used in multiple fields, such as small power plants, biogas power generation, oilfield power, field engineering, factories, fire pumps, mobile base stations, and many other fields. Suitable for power equipment such as gasoline, diesel, natural gas, biogas, etc., it has been widely used by many well-known enterprises both domestically and internationally. Completely replace the DSE7X0 controller.

LXC620: Used for single machine automation, controlling the generator set to start and stop automatically through remote startup signals;

LXC620: On the basis of LXC610, it has added the monitoring of mains electricity and automatic switching control function (AMF) for mains electricity/power generation, which is particularly suitable for single machine automation systems.

Product performance and characteristics:

LXC610: Used for single machine automation, controlling the generator set to start and stop automatically through remote startup signals;

LXC620: On the basis of LXC610, it has added the monitoring of mains electricity and automatic switching control function (AMF) for mains electricity/power generation, which is particularly suitable for single machine automation systems. Its main characteristics are as follows:

1. Adopting a 32-bit ARM microcontroller, the hardware integration is high, and the reliability is further improved;

2. The LCD display is 128×64 with backlight, and can be operated in multiple languages including Chinese, English, and other languages. It can also be selected on-site, making it convenient for debugging personnel to test the machine;

3. Equipped with advanced IoT capabilities, it can be remotely monitored anywhere with a network through the interconnection of GSM mobile network and the Internet;

4. Specially providing a perfect solution for the management of the leasing industry: remotely managing leased units through a PC, all operating parameters (oil pressure, water temperature, voltage, current, power, etc.) can be monitored, and configuration can be changed at any time to protect the units from inappropriate applications. It can record 200 detailed fault information, including: fault time, cause, key parameters such as voltage, current, power, oil pressure, water temperature, etc., and can be uploaded to the monitoring machine at any time. There are also multi-level password management options to facilitate lease management;

5. Equipped with SMS function, it can automatically send alarm messages to the 5 set phone numbers when the generator set has an alarm, and can also control the generator set and check its status through SMS;

6. Equipped with RS485 communication interface, using MODBUS protocol can achieve the "three remote" function;

7. Control and protection functions: achieve automatic start/stop, closing and opening (ATS switching), and complete fault display protection for diesel or natural gas generator sets;

8. Parameter setting function: allows users to change their parameters and store them in internal FLASH memory, which will not be lost in case of system power failure. The vast majority of parameters can be adjusted from the front panel of the controller, and all parameters can be adjusted through the RS232 interface on a PC or through the RS485 interface on a PC;

9. Multiple temperature, pressure, and oil level sensor curves can be directly used, and sensor curves can be customized;

10. Multiple successful startup conditions (speed sensor, oil pressure, power generation) can be selected;

11. It has the function of historical fault recording, real-time clock, and timed power on/off (once a month/week/day and can be set to load or not);

12. Urban power has functions such as overvoltage, undervoltage, over frequency, under frequency, phase loss, and reverse phase sequence. Power generation has functions such as overvoltage, undervoltage, over frequency, under frequency, over current, over power, reverse power, phase loss, and reverse phase sequence;

13. Three fixed analog sensors (temperature, oil pressure, liquid level);

14. Two programmable analog sensors can be set as temperature or pressure or liquid level sensors

15. The power supply range is wide (8-35) VDC, which can adapt to different starting battery voltage environments;

16. Can be used for water pump units or as an indicator instrument (only for indication and alarm, with no relay action);

17. Small in size and particularly thin, suitable for the installation of delicate and thin control boxes

convenient installation:
