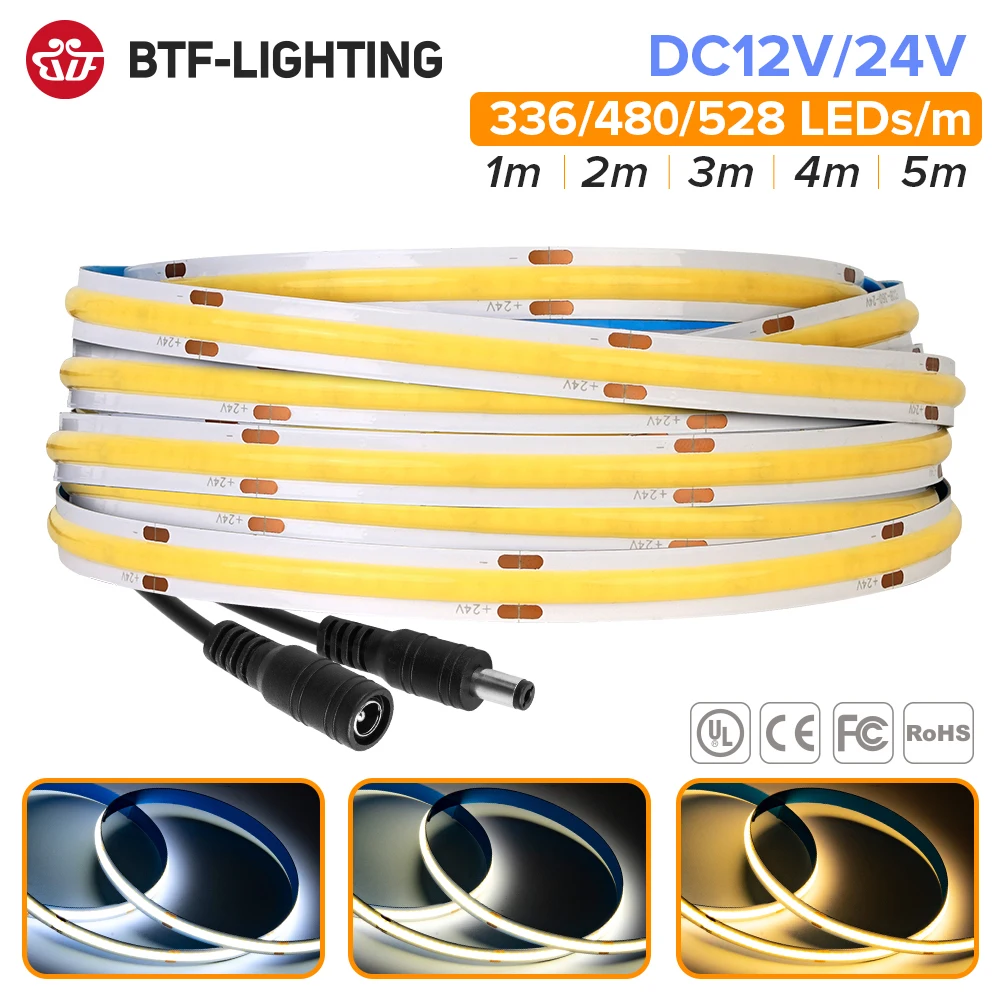

FCOB LED Strip Light 336 480 528 LED High Density Flexible FOB COB Led Light RA90 Warm Nature Cool White Linear Dimmable 12V 24V
Price range: $13.47 through $85.55
- Luminous Flux: 2000-82000
- Hign-concerned Chemical: None
- Model Number: BTF-FCOB DIM LED STRIP
- LED Chip Model: RA90
- Average Life (hrs): 80000
- Certification: ce,FCC,ROHS,UL
- Power Source: DC
- Origin: Mainland China
- Strip type: COB
- Occasion: bedroom
- Item Type: Strip
- Brand Name: BTF-LIGHTING
- Voltage: DC12V / DC24V
- LEDs Number/M: 336 / 480 / 528
- Waterproof: No
- Color Temp(K): 3000K, 4000K, 6000K
- FPCB Width: 336-8mm / 480-8mm / 528-10mm
- Optional Length: 0.5m/1m/2m/3m/4m/5m/10m
- Theoretical Power: 336-9W/M, 480-9W/M, 528m-14W/M
- Cutting Length for 336: DC12V- every 35.5mm, DC24V-every 71.5mm
- Cutting Length for 480: DC12V- every 25mm, DC24V-every 50mm
- Cutting Length for 528: DC12V- every 22.5mm, DC24V-every 45.5mm
- Feature 1: Without Dark Area
- Feature 2: Super Flexible
- Feature 3: Linear Dimmable
- Feature 4: Super Power Saving
- Occasion 1: Bedroom or Cabinet
- Occasion 2: Hotel or Office Building
- Occasion 3: Shopping Mall
- Occasion 4: Home Decoration
- Attention: Must work with DC12V or DC24V Power
- Package Including: Only LED Lights ( No power and LED controller )
Please Pay Attention:
1. The Price is Only LED Strip, Not Included Power Supply and LED Controller and Connectors.
2. This FCOB Must Use DC12V or DC24V Power Supply.
3. Every 0.5 Meter with Solder Joints, It Is Very Normal In an Electronic Product, It's Not a Quality Problem.
4. This FCOB LED Strip Can Be Cut at Each Shear Point To Create Custom Lengths, Do Not Bend LED Strip Sharply.
5. The 2 Pin DC Connectors of LED Strip Included: Red: VCC, Black: GND. You can cut the DC connector to connect the 2 pin wire to the power supply.

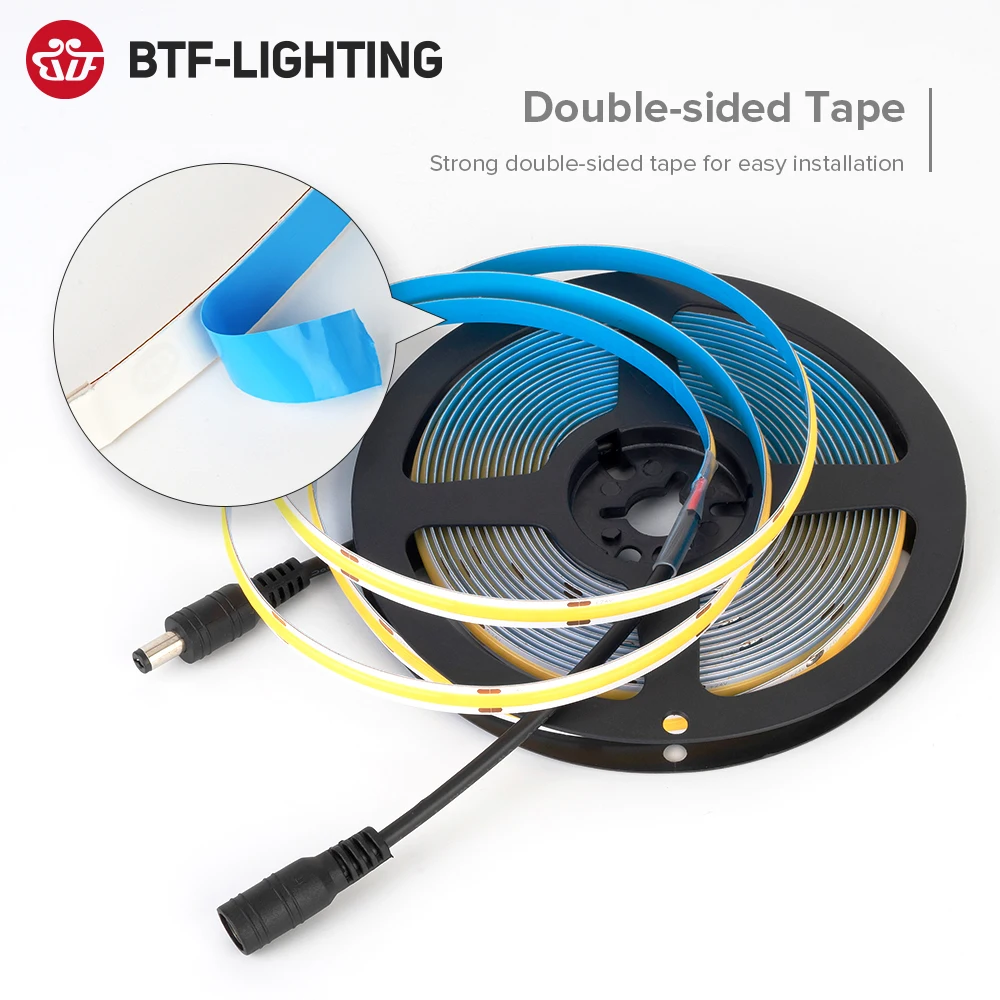

6. The LED Strip Has Adhesive Tape On The Back of PCB. Please Make Sure Installation Surface Must Be Smooth, Clean And Dry.
7. Longer LED Strip Runs, Please Add More Power to 2 Pin Wire of Both Ends To Reduce Voltage Drop.
8. If the length of the FCOB light you choose is 0.5m/1m/2m, it will come with a DC female plug, No DC male plug at the other ends, please know.
9. If you choose 10 meters, you will get 1 roll of 10 meters instead of 2 rolls of 5 meters. 10 meters of fcob light strip needs more energy, so please buy high power adapter, thank you!
How to Choose Power Supply?
First, Calculated The Whole LED Strip Lights Watts.
Theoretical Power, 336-9W/M, 480-9W/M, 528-14W/M, If You Buy 5m 528LEDs/m, So 14W/M*5m=70W.
Then, Choose the Right Power Supply.
If This LED Strip is Work with DC12V Power, So 70W / 12V = 5.8A ( At Least 6A or more ).
FCOB LED Strip Light 336 480 528 LED High Density Flexible FOB COB Led Light RA90 Warm Nature Cool White Linear Dimmable 12V 24V
Specification:
Input Voltage: DC12V / 24V
Theoretical Wattage : 336-9W/M, 480-9W/M, 528m-14W/M
FPCB width: 336leds/m-8mm, 480leds/m-8mm, 528leds/m-10mm
LED quantity: 336/480/528 LEDs/M
Cutting length: 336leds/m, DC12V- every 35.5mm, DC24V-every 71.5mm. 480leds/m, DC12V- every 25mm, DC24V-every 50mm. 528leds/m, DC12V- every 22.5mm, DC24V-every 45.5mm.
Color temperature: Warm White(3000K), Nature White(4000K), Cool White(6000K).
Color Rendering Index: Ra＞90
Operation temperature: -20℃-+45℃
Storage temperature: -20℃-+60℃
View angle: 180°
Package:
1× FCOB LED strip（ power supply, DIM led controller and connectors are not included ）
UL CERTIFICATE OF COMPLIANCE
20 reviews for FCOB LED Strip Light 336 480 528 LED High Density Flexible FOB COB Led Light RA90 Warm Nature Cool White Linear Dimmable 12V 24V
Related products
-
Fancy armchair
$855.00 -
XSTORM H1 H3 LED Headlight Bulb Mini 50W 20000LM CSP for Car Headlamp Fanless Light Auto Diode Fog Lamps 12V 6000K Automobile
Price range: $34.85 through $35.38 -
Circle lamp
Price range: $98.00 through $120.00
A***Z (verified owner) –
Super bright and looks amazing but it gets a little warm so make sure you don’t have it covered because I’m not sure how hot it could get
Stone Motif Client (verified owner) –
The quality is great, I was surprised by the product
R***i (verified owner) –
It’s okay, it’s very strong!, as described, fast shipping, I recommend the seller.
Stone Motif Client (verified owner) –
very bright. the strip is like one long light. I recommend this strip for under cabinet lighting
a***s (verified owner) –
Very good quality product, makes a lot of light. The product comes well packed and rolled with its connectors
J***a (verified owner) –
Well packed, good material and very good lighting I will buy again if I need it thanks
d***k (verified owner) –
Delivery to Ukraine Shwidka. Yakiste is good. Everything with the seller’s description
S***n (verified owner) –
Well received error wanted to 500 led but too long to make a return it is a pity hoping that it will be suitable
D***m (verified owner) –
I have reviewed it, everything well everything perfect, I loved the product, and it arrived very quickly, I am very satisfied, thank you.
B***r (verified owner) –
All good, thank you!
g***r (verified owner) –
I hit the LED strip light and the same bad news! Svitlodichka viglyadak Chudovo. Installation is simple. Svitlo yaskrabe and nasichene. Recommend!
R***n (verified owner) –
properly packaged and fast shipping
M***s (verified owner) –
Strong and constant light! Pretty strong sticker! Great product recommend
G***n (verified owner) –
perfect for my movie theater
П***ч (verified owner) –
LED strip 528 LEDs per meter, supply voltage 24 V.
Delivery 14 days from the date of payment, the track in Russia was tracked, received in the Cainiao checkpoint.
Package-soft mail bag, anti-static bag, no damage.
Measured the current without unwinding the tape, connected on both sides-the current consumption is 1.77, and this is not correct, ideally unwind, connect with thick wires on both sides, without unnecessary pads.
Cut off the meter of the tape, the voltage 23,9 at the input, the output is 23,35 at, the current is 530 Ma, if connected directly to the power supply or from both sides, I think it is quite possible to get 580 Ma.
Color temperature 3100 K.
CRI color rendering index-93, not bad, I personally use tape, sunlike led house lighting lamps with a CR-98 color rendering index.
I plan this tape for lighting stairs, various rarely visited rooms.
I will install it in a low profile without a screen or on an aluminum strip with a thickness of 3mm.
B***a (verified owner) –
Very fast delivery! Colour light is beautiful, I even got 4 transparent solderless connectors to connect and 6 plastic brackets with screws. Very satisfied. I hope that will last for ever. My measurements are following:
First, I power 10m strip with constant voltage power supply with voltage 24,546V and with both ends powered power was 127W, which corresponds default power. Voltage at the middle strip (5 m) was 22,75V.
Then I powered whole 10 with constant current LED power supply (mean well MEAN WELL XLG-200-24-A / 200W) only one side. Voltage at beginning was 23,931V, at the end was 21,508V, with power consumption 64 W. When both ends connected to the same power supply the power was 103 W. When I will install it on alu LED profile I will power it with this power supply, because lower voltage is good for long lifetime. Since LED is so bride at 23,9V I will use dimmer to dim.
Stone Motif Client (verified owner) –
Very good thanks
E***m (verified owner) –
excellent
D***z (verified owner) –
Very good
Stone Motif Client (verified owner) –
It came about time, not destroyed and working. Quality super.
