1-40 Steps LED Stair Light Strip Motion Sensor Stairs LED Strip Light With 2 Sensor Easy Insallation Stairway Step Light Strip
Price range: $176.20 through $989.94
- Is Smart Device: no
- Power Generation: motion
- Model Number: Controller-Step-05/09-KIT
- LED Chip Model: SMD2835
- Average Life (hrs): 50000
- Certification: ce,FCC,GS,LVD,UL
- Power Source: DC
- Origin: Mainland China
- Strip type: COB
- Power Consumption (W/m): 8.64W/m
- Occasion: bedroom
- Specifications (light beads / m): 480
- Item Type: Strip
- Brand Name: FOB COB
- Voltage: 24V
- LEDs Number/M: 480
- LED Chip Brand: SANAN
- Waterproof: No
- Color Temp(K): 3000k 4000k 6000k
- Product name: Stair Light Motion Sensor Kit
- Advantage: No need to complicatedly wire, easy to install
- Feature: Can step by step control
Product description

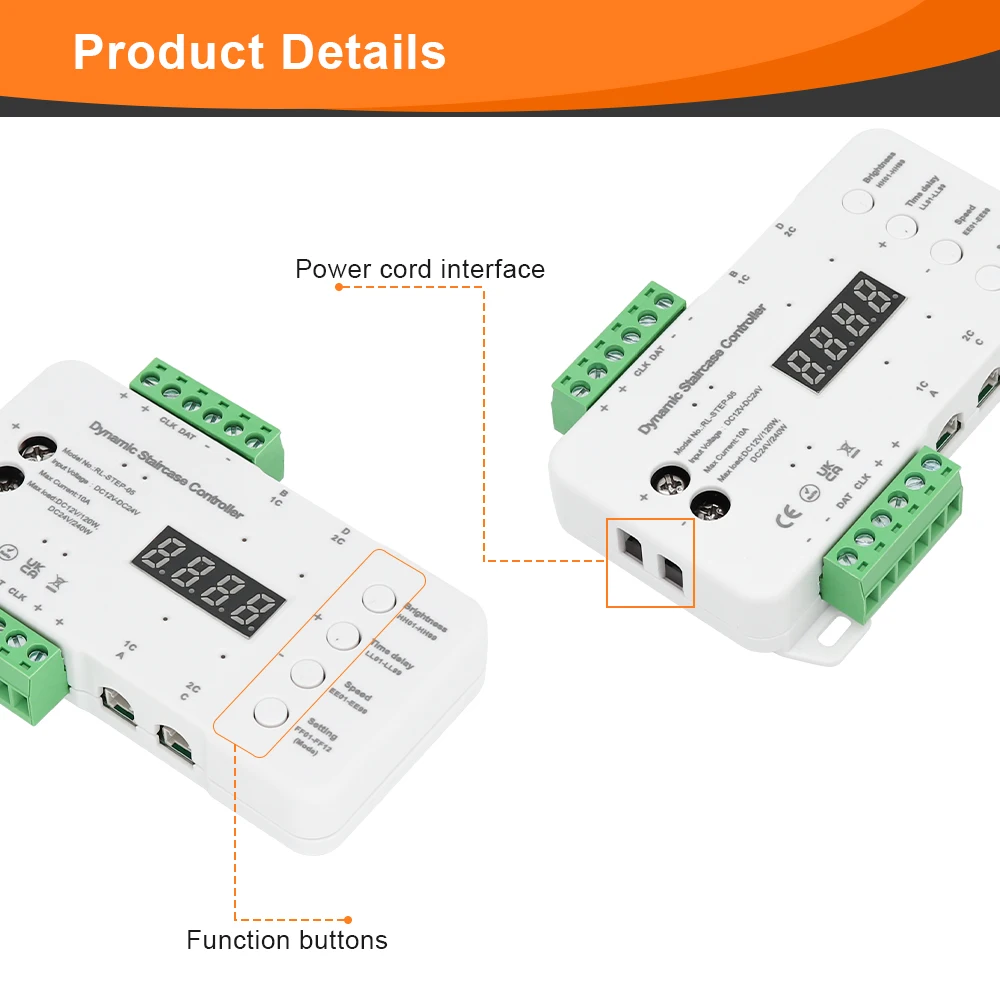

Product Name: Stair Motion Sensor Switch
Voltage: DC12V / DC24V
Max current: 10A
Power: each step<15w total<240w (DC12V /120W; DC24V/ 240W Max)
Sensors: 2 PIR Sensoron both sides
Special function: 4PIN main wire for Max 99 steps Delay Time/Speed / dimmable Lights and 12 Model
PIR Sensor: fixed mounted or recessed mounted ( Dia 15mm only )
Features: there's a main line cable to conect all strips, no need complicate wiring
Advantage: can control the led strip light step by step

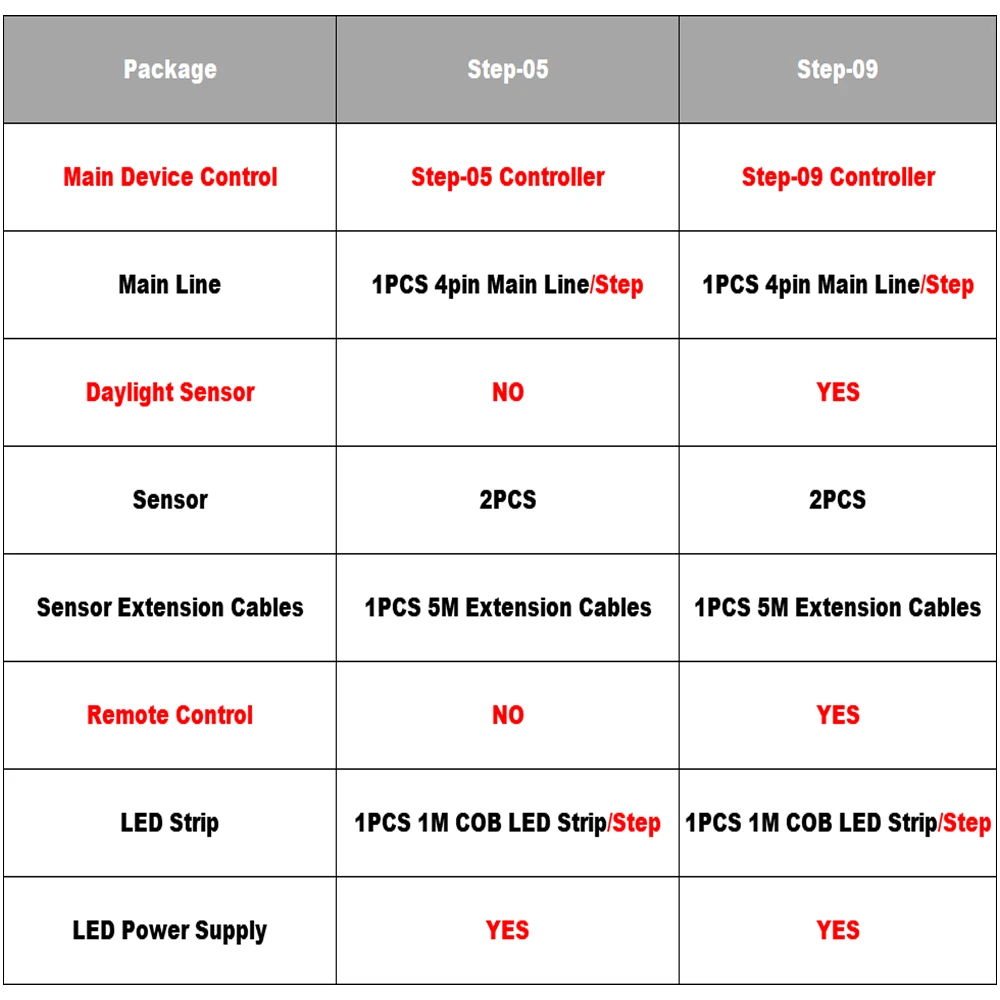

Package Included:
1x Controller
1x 16-step or 20-step main line cable
2x PIR sensor (1 meter)
1 batch of tools and accessories
LED strip and power supply need to choose
NOTE:
This controller does not have the function of lighting on both sides of the stairs.

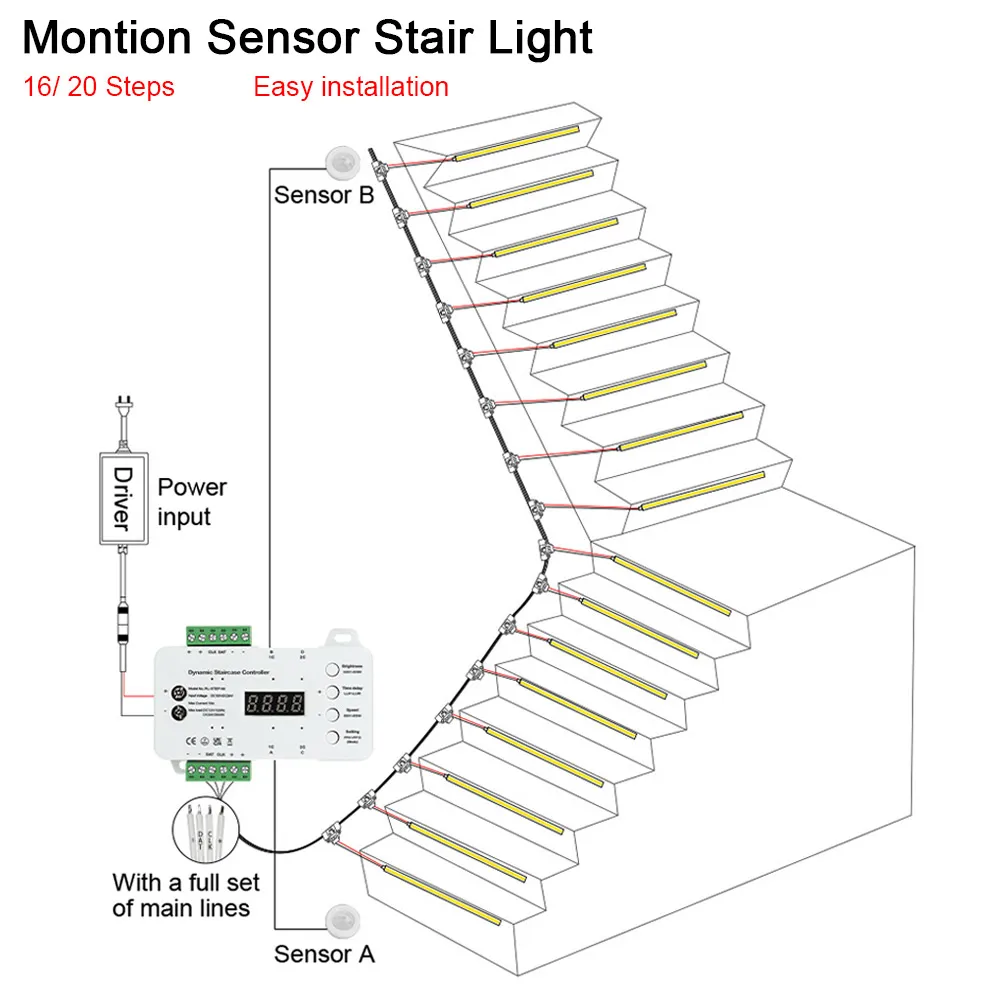

1- A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.
2- The product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.
3- The product is not waterproof.
4- Don't make the +/- pole reversed, or the controller can't work.
【Important Tips!】
Please install the led strips on the main cable at first, after the led strips are all installed, then connect power supply!
Please DO NOT install or take off the led strip when the controller is powered on. This is easy to get the main cable burnt!
How To Use
1. Setting
Long press“Setting" to set Step Numbers, Brightness, Time Delay, Speed, Mode
Short press to“Setting" to enter next setting
After finished all setting, long press“Setting”to save all setting

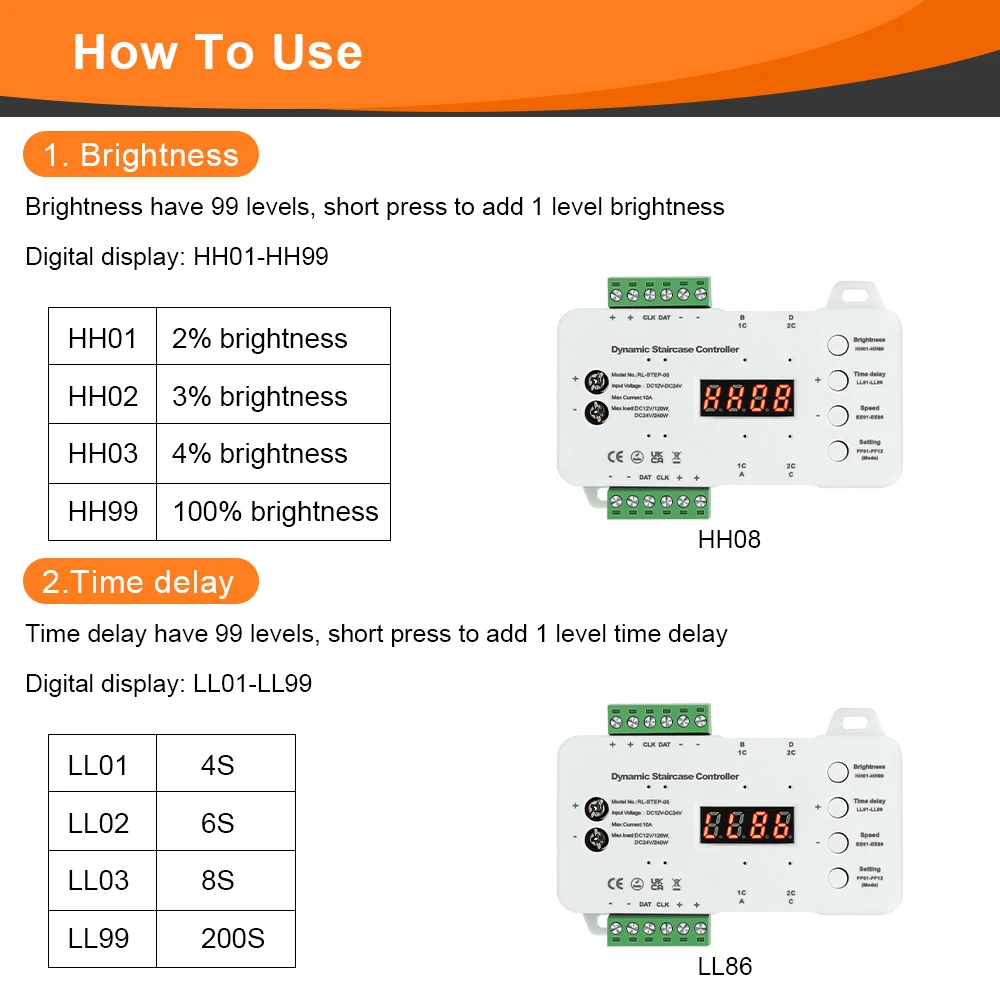

2. Brightness
Brightness have 99 levels, short press to add 1 level brightness
Digital display: HH01-HH99
HH01——————2% brightness
HH02——————3% brightness
HH03——————4% brightness
HH99——————100% brightness
3.Time delay
Time delay have 99 levels, short press to add 1 level time delay
Digital display: LL01-LL99
LL01——————4S
LL02——————6S
LLO3——————8S
LL99——————200S
4. Speed
Speed have 99 levels, short press to adjust speed
Digital display: EE01-EE99
EE01——————150ms fastest speed
EE02——————175ms
EEO3——————200ms
EE99——————2600ms slowest speed
5. Set the working mode of the light strip (12 modes)
FF01——————The first mode
FF05——————The fifth mode
FF010——————The tenth mode
6. Set the number of stairs
1C01 —————— 1st Floor, 1st floor stairs
1C05 —————— 1st Floor 5 Stairs
1C10 —————— 1st Floor 10 Stairs
2C01 —————— 2nd Floor, 1 Staircase
2C05 —————— 2nd Floor 5 Stairs
2C10 —————— 2nd floor 10 stairs
